Biomass Wood Pellet Boiler
Biomass Wood Pellet Boilers
300㎡ & 500㎡ pellet boilers are the best seller for small area heating space for home & villa & hospital etc.
* Brief technology
1 | Heating Space | 300㎡ | 500㎡ |
|
2 | Size | 600mm x 900mm x 1255mm | 705mm x 855mm x 1350mm | |
3 | Weight | 260kgs | 320kgs | |
4 | Pipe ￠ | 90mm | 114mm | |
5 | Water pipe | DN40 | DN40 |
* Case Study : https://eveecoproducts.com/news_51/224.html
* Case Study : https://eveecoproducts.com/newslist/235.html
* Case Study : https://eveecoproducts.com/news_51/236.html (Pellet boilers comparation)

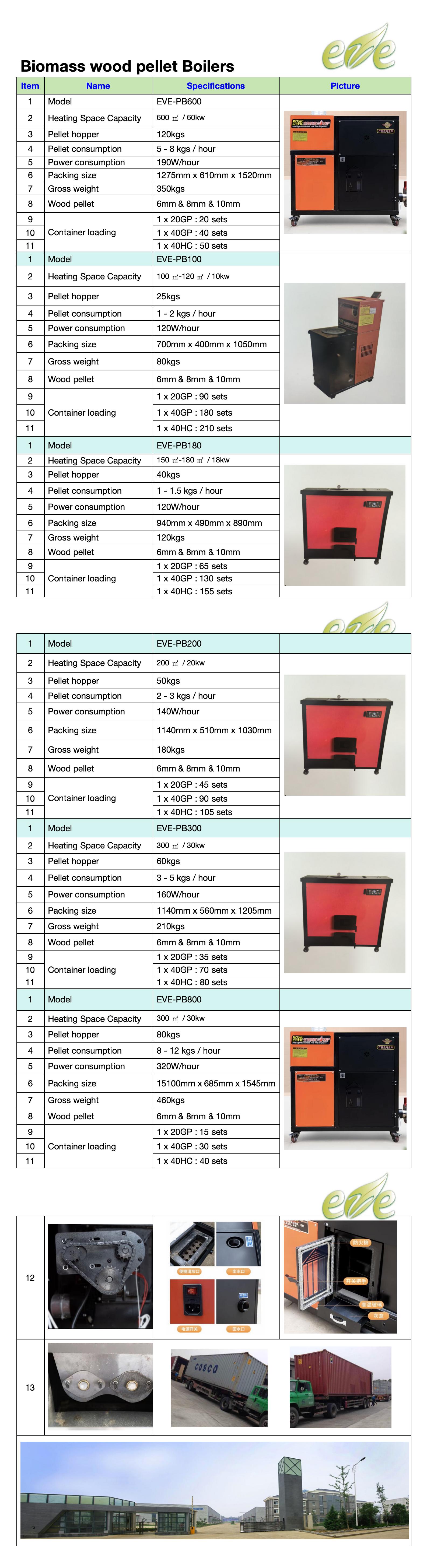

Item | Name | Specifications | Picture |
1 | Model | EVE-PB600 |
|
2 | Heating Space Capacity | 600㎡ / 60kw | |
3 | Pellet hopper | 120kgs | |
4 | Pellet consumption | 5 - 8 kgs / hour | |
5 | Power consumption | 190W/hour | |
6 | Packing size | 1275mm x 610mm x 1520mm | |
7 | Gross weight | 350kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 20 sets | |
10 | 1 x 40GP : 40 sets | ||
11 | 1 x 40HC : 50 sets | ||
1 | Model | EVE-PB100 |
|
2 | Heating Space Capacity | 100㎡-120㎡ / 10kw | |
3 | Pellet hopper | 25kgs | |
4 | Pellet consumption | 1 - 2 kgs / hour | |
5 | Power consumption | 120W/hour | |
6 | Packing size | 700mm x 400mm x 1050mm | |
7 | Gross weight | 80kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 90 sets | |
10 | 1 x 40GP : 180 sets | ||
11 | 1 x 40HC : 210 sets | ||
1 | Model | EVE-PB180 | |
2 | Heating Space Capacity | 150㎡-180㎡ / 18kw |
|
3 | Pellet hopper | 40kgs | |
4 | Pellet consumption | 1 - 1.5 kgs / hour | |
5 | Power consumption | 120W/hour | |
6 | Packing size | 940mm x 490mm x 890mm | |
7 | Gross weight | 120kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 65 sets | |
10 | 1 x 40GP : 130 sets | ||
11 | 1 x 40HC : 155 sets | ||
1 | Model | EVE-PB200 | |
2 | Heating Space Capacity | 200㎡ / 20kw | |
3 | Pellet hopper | 50kgs | |
4 | Pellet consumption | 2 - 3 kgs / hour | |
5 | Power consumption | 140W/hour | |
6 | Packing size | 1140mm x 510mm x 1030mm | |
7 | Gross weight | 180kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 45 sets | |
10 | 1 x 40GP : 90 sets | ||
11 | 1 x 40HC : 105 sets | ||
1 | Model | EVE-PB300 | |
2 | Heating Space Capacity | 300㎡ / 30kw |
|
3 | Pellet hopper | 60kgs | |
4 | Pellet consumption | 3 - 5 kgs / hour | |
5 | Power consumption | 160W/hour | |
6 | Packing size | 1140mm x 560mm x 1205mm | |
7 | Gross weight | 210kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 35 sets | |
10 | 1 x 40GP : 70 sets | ||
11 | 1 x 40HC : 80 sets | ||
1 | Model | EVE-PB800 | |
2 | Heating Space Capacity | 300㎡ / 30kw |
|
3 | Pellet hopper | 80kgs | |
4 | Pellet consumption | 8 - 12 kgs / hour | |
5 | Power consumption | 320W/hour | |
6 | Packing size | 15100mm x 685mm x 1545mm | |
7 | Gross weight | 460kgs | |
8 | Wood pellet | 6mm & 8mm & 10mm | |
9 | Container loading | 1 x 20GP : 15 sets | |
10 | 1 x 40GP : 30 sets | ||
11 | 1 x 40HC : 40 sets |
Biomass wood pellet boilers are the most advanced and welcome to supply 60℃ - 85℃ hot water for household radiator and underfloor heating system or much more larger space heating , such as : factory & villas & workshop & hospital & agriculture etc.

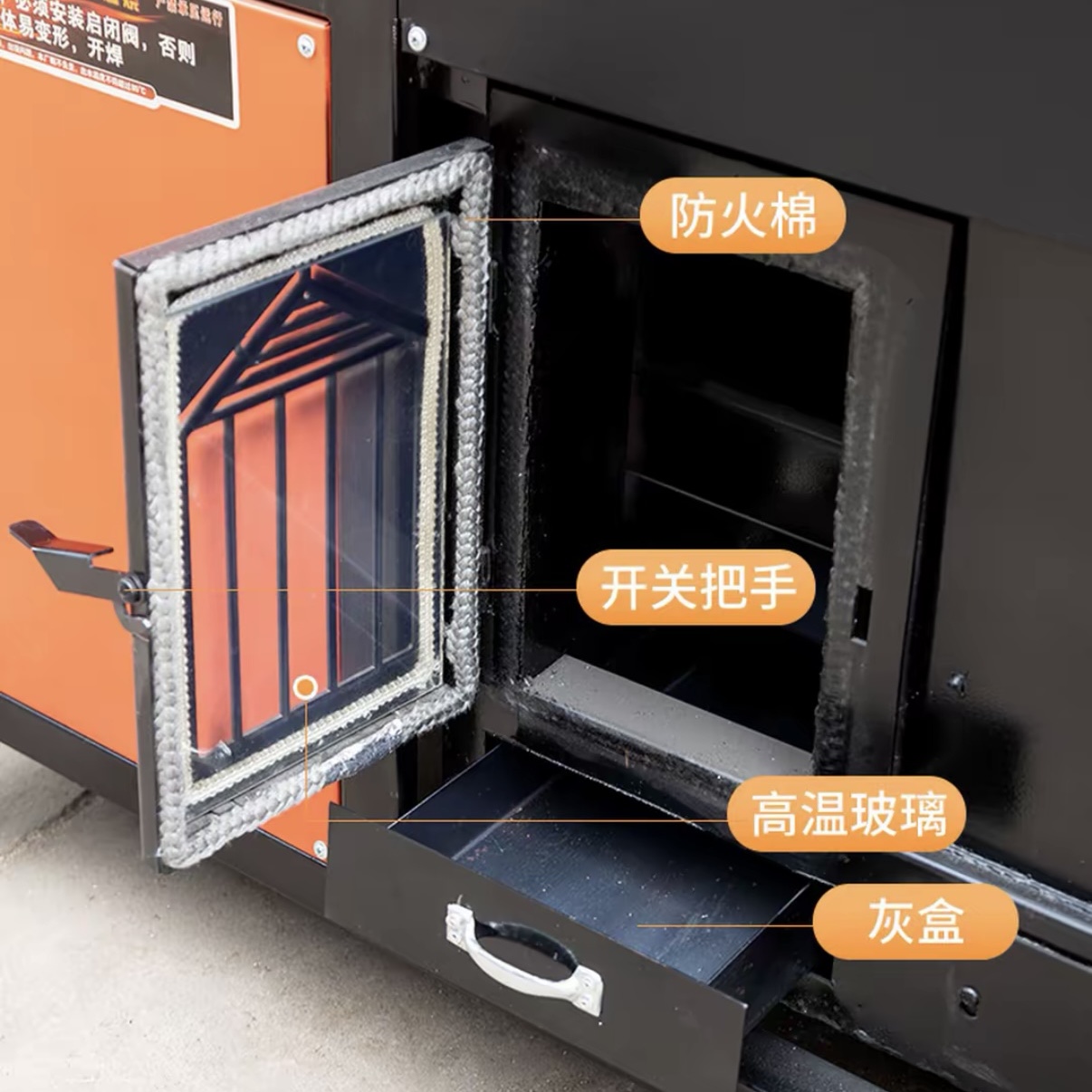

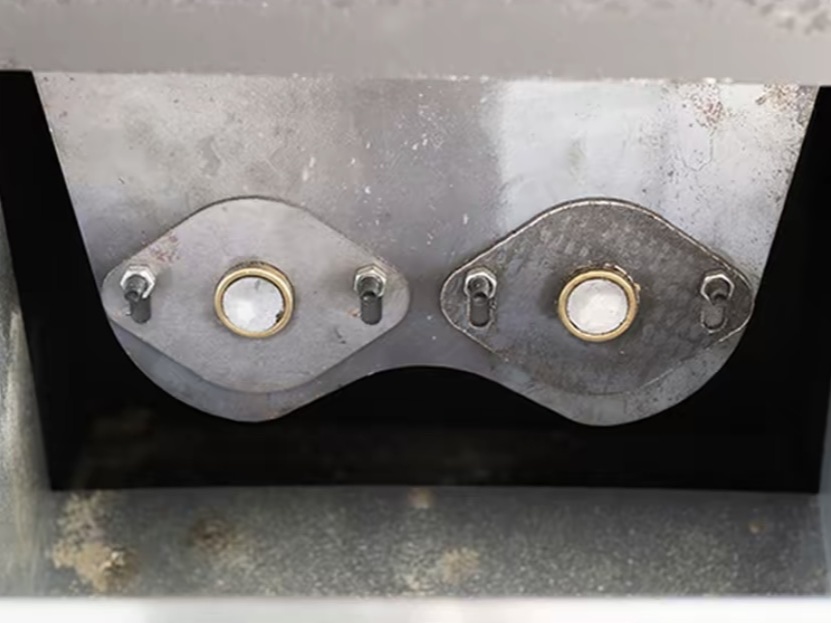

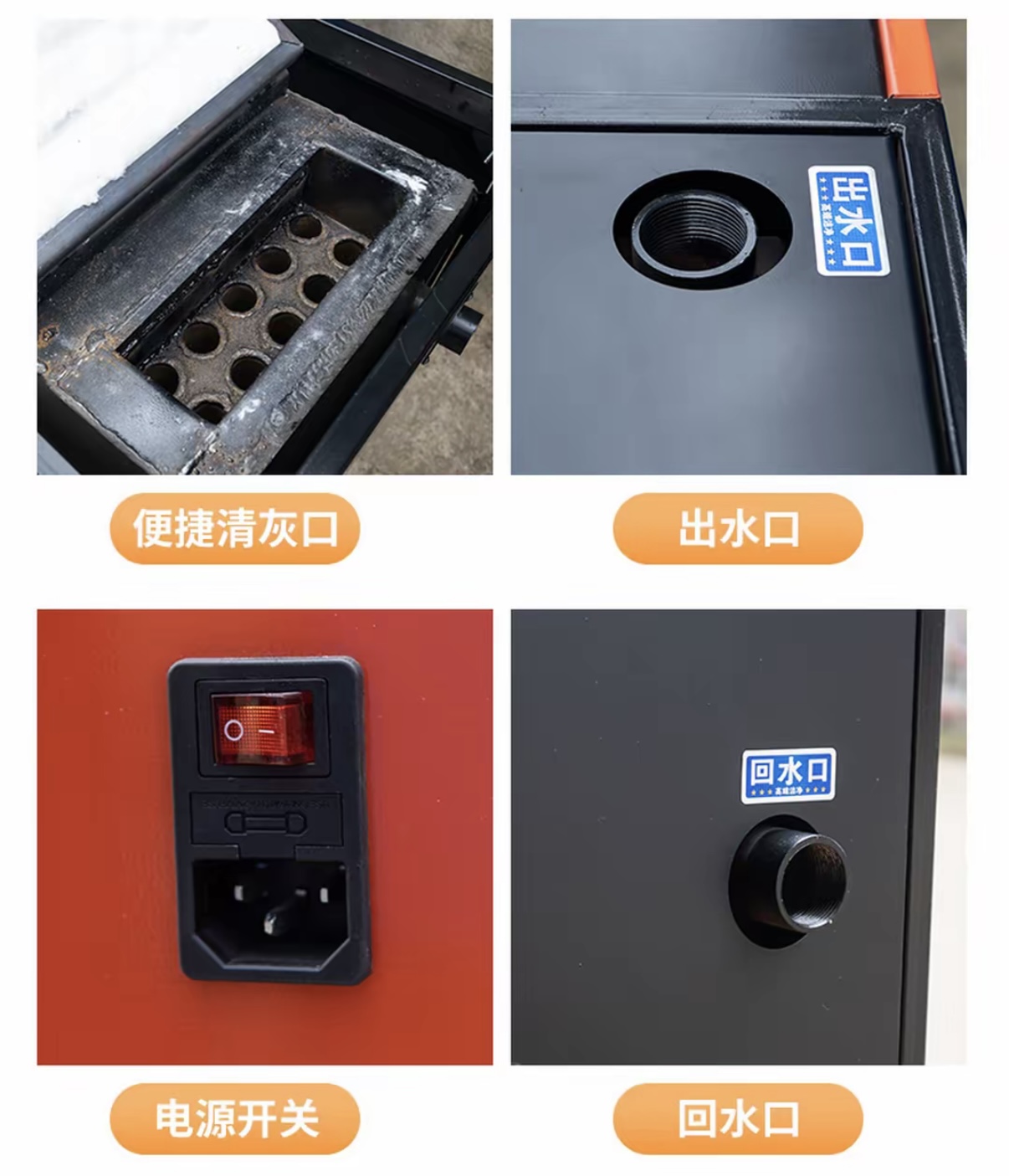

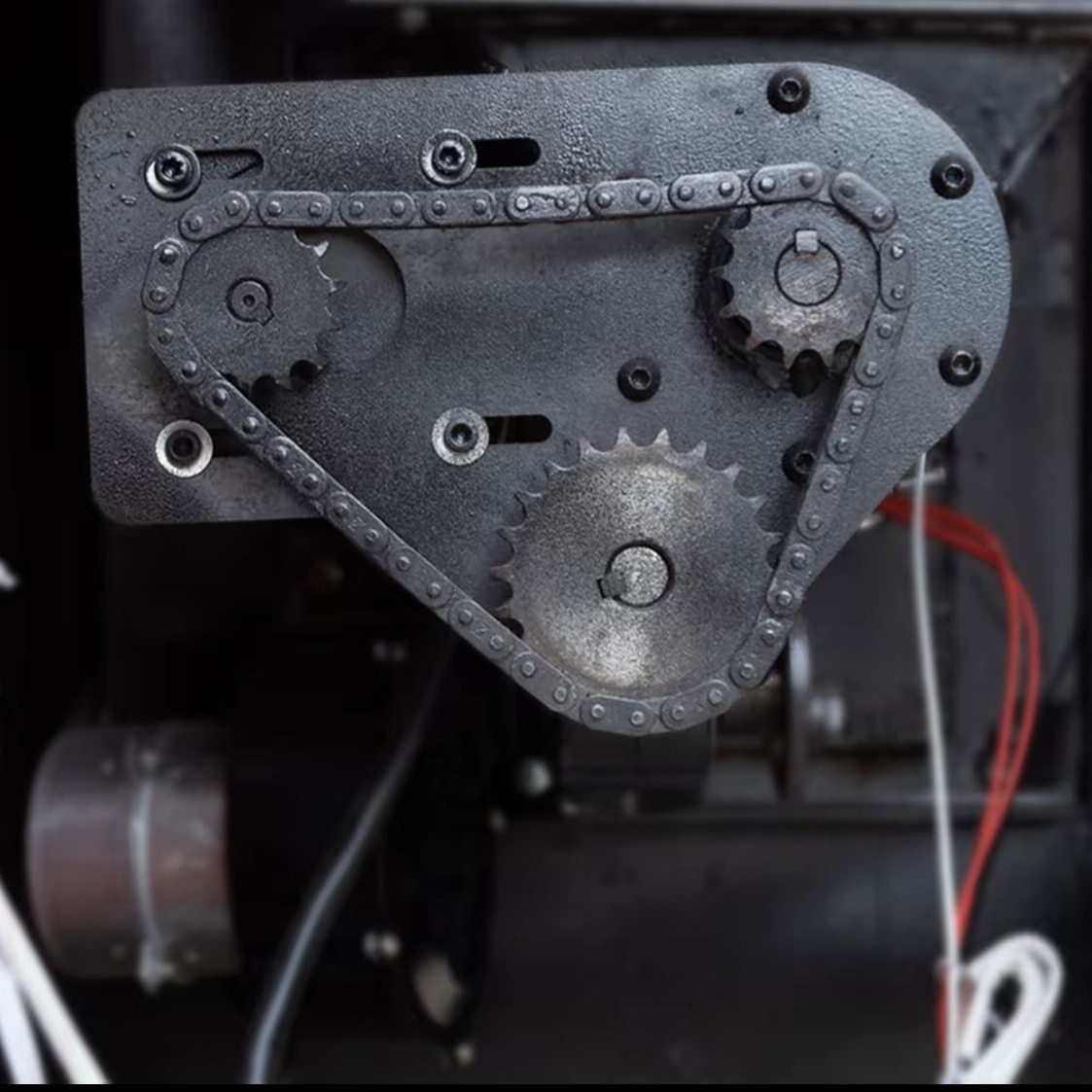

* Biomass wood pellet boilers spare parts details-show :
1 | |
|
|
2 |
|  | |

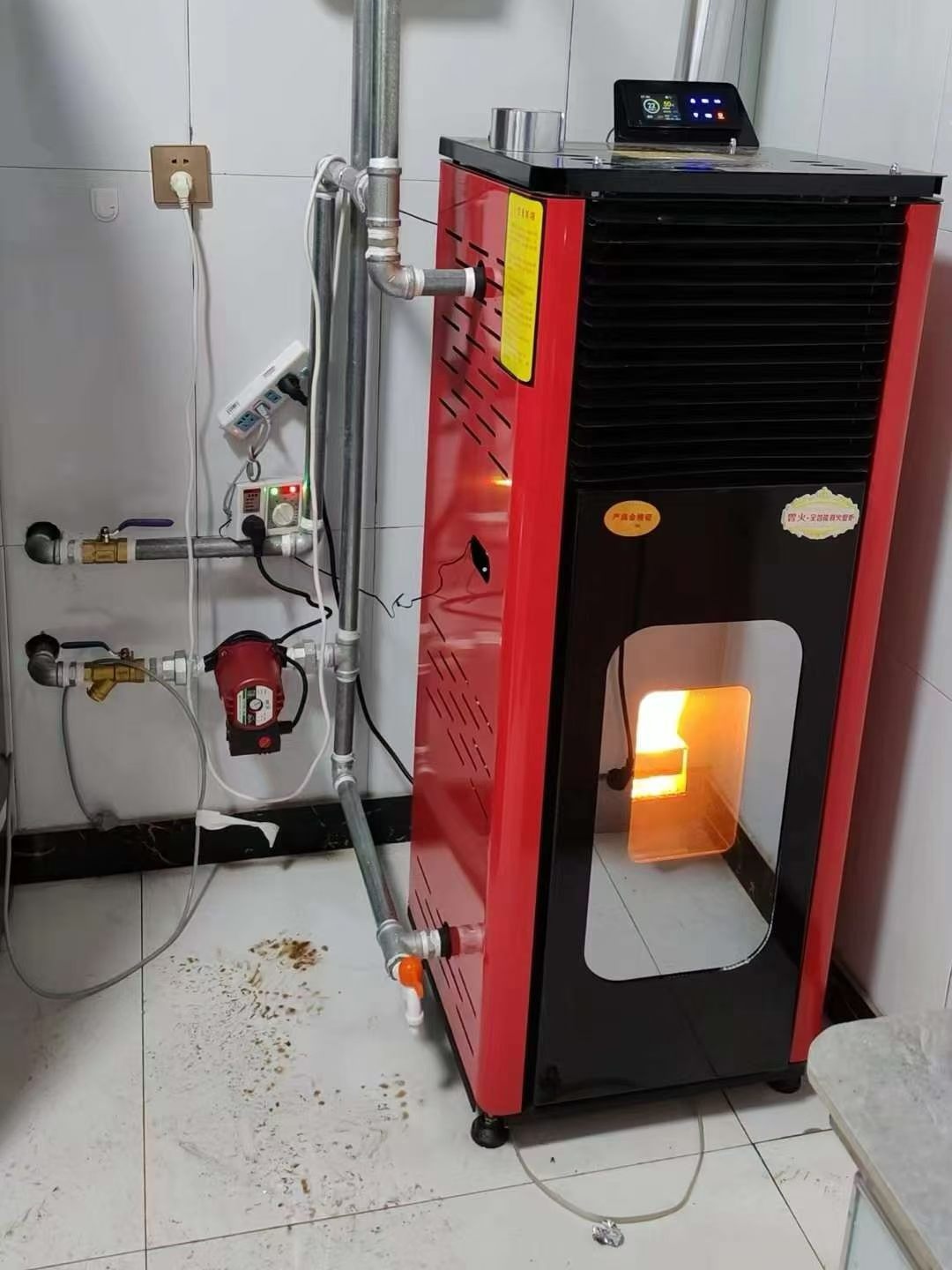

Biomass wood pellet boilers installment case study: * 100㎡ - 200㎡ - 300㎡ small area heating space * Generate 60℃-85℃ hot water * Supplying hot water for under floor circuling and radiators * Replace : traditional gas heaters & heat pump water heaters * This is for household home small area space heating * Commercial or industrial biomass wood pellet boilers are able to generate heating for large are space heating from 500㎡ to 50000㎡ | |||
This kind of biomass wood pellet boilers can supply output heating space areas from 100㎡ to 50000㎡, all OEM or ODM biomass wood pellet boilers can be designed and produced by customers requirements for their local site working environment.
More info with regards to EVE OEM & ODM biomass wood pellet boilers , you know where to get us :
* Whatsapp: 0086 17664056676
* Email: info@eveecoproducts.com & eveecoproducts@gmail.com
Biomass Pellet Hot Water Boiler
-- Hydronic Heating System
1. Product Definition A Biomass Pellet Hot Water Boiler is an automated, high-efficiency heating appliance that combusts standardized biomass pellets to generate hot water. This hot water is then circulated through a closed-loop pipe network to transfer heat for space heating, domestic hot water, or industrial processes. It serves as a sustainable, carbon-neutral replacement for fossil-fuel-fired boilers (oil, gas, or propane).
2. Core Working Principle The system operates via a fully integrated, automated process: ·
3. Fuel Handling & Feeding: · Pellets are typically stored in an integrated hopper or a large external silo. ·
4. An electrically powered auger (screw conveyor) automatically transfers fuel from storage to the combustion chamber, ensuring continuous operation with minimal user intervention. ·
5. Automated Combustion & Heat Generation: · Pellets are fed into a burn pot or grate. An automatic ignition element (glow plug or igniter) starts the combustion. ·
6. A controlled combustion air fan (primary air) ensures optimal, high-temperature burning with very low particulate and gaseous emissions. Advanced models feature lambda sensors for real-time oxygen optimization. ·
7. Heat Transfer to Water: · The hot combustion gases flow through a high-efficiency heat exchanger (often a multi-pass, condensing design made of stainless steel or cast iron). ·
8. Cold system return water is pumped through this heat exchanger, absorbing thermal energy from the flue gases before being heated to the set temperature (typically 60°C - 85°C for standard systems, or lower for condensing modes). · Hot Water Distribution & Heat Emission: ·
9. The newly heated water is circulated by a pump(s) through insulated pipes to various heat emitters located throughout the building or facility. · Common Heat Emitters Include: Radiators (panels), underfloor heating (PEX) pipes, fan coil units, or industrial process heat exchangers. ·
10. A hydronic buffer tank is often used to decouple boiler operation from heat demand, increasing efficiency, reducing cycling, and ensuring stable system temperatures. ·
11. Ash Removal & Exhaust: ·
12. Advanced self-cleaning systems (e.g., automatic ash screws or shaking grates) collect residual ash (typically <1% of fuel volume) into an ash drawer, requiring emptying only periodically. ·
13. Cooled exhaust gases are vented through a dedicated flue system. · Intelligent Control System: ·
14. A digital controller acts as the system's brain, managing pellet feed rate, combustion air, water temperature, pump operation, and safety protocols. ·
15. It often includes weather compensation, linking outdoor temperature to water supply temperature for optimal efficiency, and can integrate with smart home systems.
16. 3. Key Technical Advantages · High Efficiency: Modern pellet boilers achieve efficiencies of 90-95% (higher heating value). Condensing models recover latent heat from flue gases for even greater efficiency. ·
17. Automation & Convenience: Comparable to fossil fuel systems in usability, with automatic ignition, modulation, and ash removal. ·
18. Carbon Neutrality: CO₂ released equals CO₂ absorbed during biomass growth. · Renewable & Local Fuel Source: Enhances energy security and supports local economies. ·
19. Clean & Compliant: Meets stringent emissions standards (e.g., EN 303-5, EPA) for particulate matter and carbon monoxide.
20. 4. Primary Application Scenarios This technology is versatile and scalable, suitable for: ·
21. Residential Heating: ·
22. Single-Family Homes: Primary heat source for radiator or underfloor heating systems. ·
23. Multi-Family Dwellings/Apartment Blocks: Central heating plant providing heat and domestic hot water via a distribution network. ·
24. Commercial & Institutional Buildings: ·
25. Schools, offices, hotels, hospitals, and sports centers requiring reliable, cost-effective space heating and hot water. ·
26. Agricultural & Industrial Applications: ·
27. Greenhouse Heating: Hot water circulating through pipe networks provides uniform, radiant heat ideal for plant growth. ·
28. Livestock Farming: Heating for barns, piggeries, and poultry houses. ·
29. Process Heat: Providing hot water or low-pressure steam for cleaning, sanitation, or low-temperature industrial processes. ·
30. District Heating (Micro-Grids): Serving as the core energy plant for a small network of local buildings or facilities.
Item | Name | Specifications |
1 | Model | EVE-PB600 |
2 | Heating Space Capacity | 600㎡ / 60kw |
3 | Pellet hopper | 120kgs |
4 | Pellet consumption | 5 - 8 kgs / hour |
5 | Power consumption | 190W/hour |
6 | Packing size | 1275mm x 610mm x 1520mm |
7 | Gross weight | 350kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 20 sets |
10 | 1 x 40GP : 40 sets | |
11 | 1 x 40HC : 50 sets | |
1 | Model | EVE-PB100 |
2 | Heating Space Capacity | 100㎡-120㎡ / 10kw |
3 | Pellet hopper | 25kgs |
4 | Pellet consumption | 1 - 2 kgs / hour |
5 | Power consumption | 120W/hour |
6 | Packing size | 700mm x 400mm x 1050mm |
7 | Gross weight | 80kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 90 sets |
10 | 1 x 40GP : 180 sets | |
11 | 1 x 40HC : 210 sets | |
1 | Model | EVE-PB180 |
2 | Heating Space Capacity | 150㎡-180㎡ / 18kw |
3 | Pellet hopper | 40kgs |
4 | Pellet consumption | 1 - 1.5 kgs / hour |
5 | Power consumption | 120W/hour |
6 | Packing size | 940mm x 490mm x 890mm |
7 | Gross weight | 120kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 65 sets |
10 | 1 x 40GP : 130 sets | |
11 | 1 x 40HC : 155 sets | |
1 | Model | EVE-PB200 |
2 | Heating Space Capacity | 200㎡ / 20kw |
3 | Pellet hopper | 50kgs |
4 | Pellet consumption | 2 - 3 kgs / hour |
5 | Power consumption | 140W/hour |
6 | Packing size | 1140mm x 510mm x 1030mm |
7 | Gross weight | 180kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 45 sets |
10 | 1 x 40GP : 90 sets | |
11 | 1 x 40HC : 105 sets | |
1 | Model | EVE-PB300 |
2 | Heating Space Capacity | 300㎡ / 30kw |
3 | Pellet hopper | 60kgs |
4 | Pellet consumption | 3 - 5 kgs / hour |
5 | Power consumption | 160W/hour |
6 | Packing size | 1140mm x 560mm x 1205mm |
7 | Gross weight | 210kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 35 sets |
10 | 1 x 40GP : 70 sets | |
11 | 1 x 40HC : 80 sets | |
1 | Model | EVE-PB800 |
2 | Heating Space Capacity | 300㎡ / 30kw |
3 | Pellet hopper | 80kgs |
4 | Pellet consumption | 8 - 12 kgs / hour |
5 | Power consumption | 320W/hour |
6 | Packing size | 15100mm x 685mm x 1545mm |
7 | Gross weight | 460kgs |
8 | Wood pellet | 6mm & 8mm & 10mm |
9 | Container loading | 1 x 20GP : 15 sets |
10 | 1 x 40GP : 30 sets | |
11 | 1 x 40HC : 40 sets |
